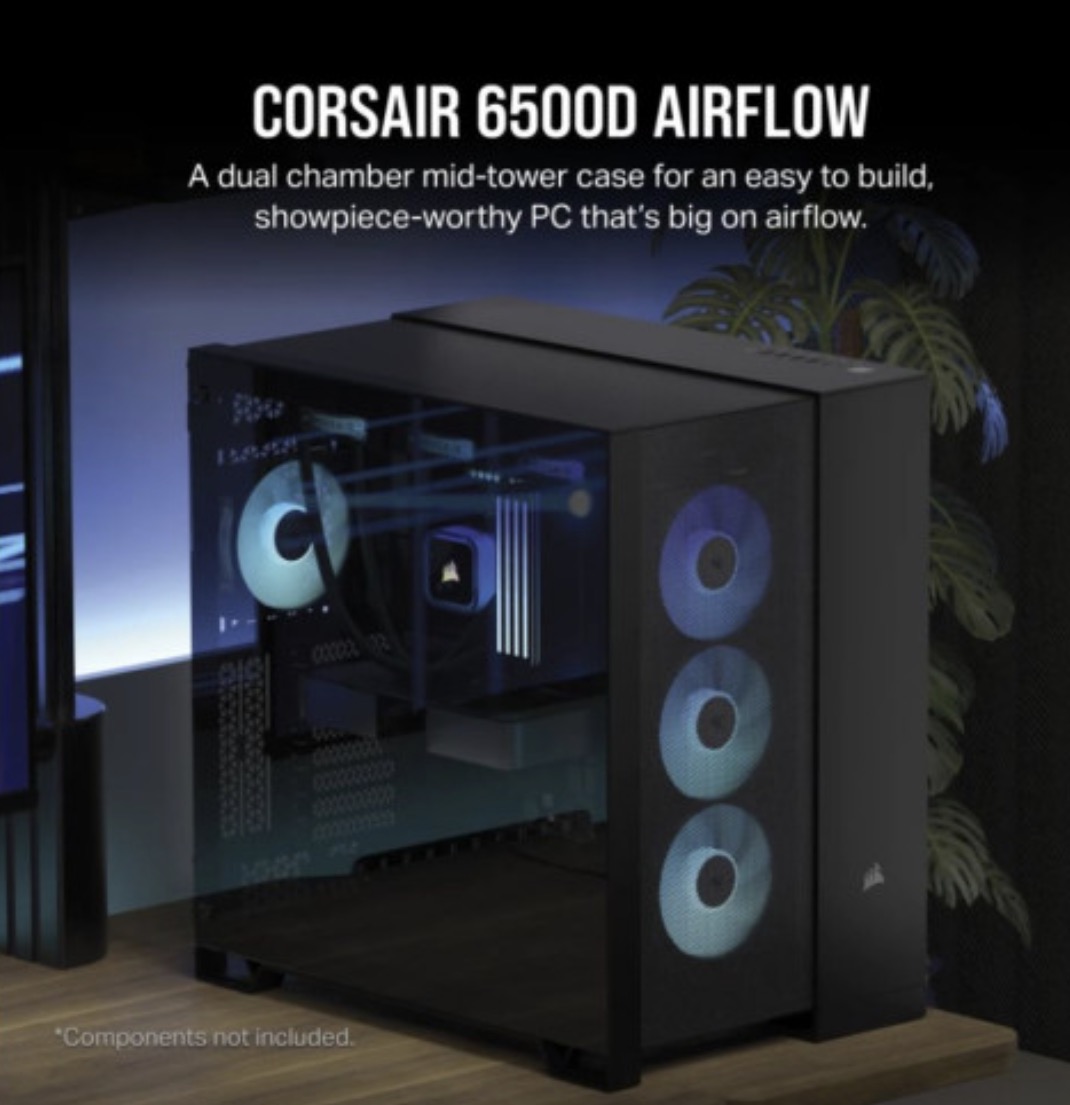

Corsair 6500D Airflow

Transform your build with the Corsair 6500D Airflow, a premium mid-tower case featuring a dual chamber design for clean cable management and optimal airflow. Perfect for enthusiasts, it supports high-performance cooling and showcases your components with a sleek, showpiece-worthy look.

Corsair 6500D Airflow is a mid-tower dual-chamber PC case with a strong focus on high airflow, thanks to its fully meshed panels (front, top, side, and bottom). It supports excellent cooling options with up to 13 fans and multiple large radiators.

Key Specifications:

• Form Factor: Mid-Tower (Dual Chamber)

• Dimensions (L x W x H): 481 mm × 328 mm × 496 mm

• Weight: ~16.9 kg

• Materials: Steel, Tempered Glass, Plastic

• Motherboard Support: Mini-ITX, Micro-ATX, ATX, E-ATX (up to 305 × 277 mm), plus MSI Project Zero & ASUS BTF (reverse connector) compatible

Clearances:

• Maximum GPU Length: 400 mm (370 mm with front radiator)

• Maximum CPU Cooler Height: 190 mm

• Maximum PSU Length: 225 mm

Cooling Support:

• Fan Support (up to 13 fans total):

  • Front: 3× 120 mm or 2× 140 mm

  • Top: 3× 120 mm or 3× 140 mm

  • Side: 3× 120 mm

  • Bottom: 3× 120 mm or 3× 140 mm

  • Rear: 1× 120 mm or 1× 140 mm

• Radiator Support (up to 4× 360 mm):

  • Front, Top, Side, Bottom: up to 360 mm / 280 mm / 240 mm

  • Rear: up to 140 mm / 120 mm

Storage:

• 2× 3.5" HDD

• 2× 2.5" SSD (additional mounts available)

Front I/O:

• 1× USB 3.2 Gen 2 Type-C

• 4× USB 3.2 Gen 1 Type-A

• 1× Audio in/out (headphone + microphone)

Other Features:

• Tempered glass side panel

• Dual-chamber design (separates PSU and storage for cleaner builds)

• Vertical GPU mount support (with optional kit)

• Excellent cable management space

• No fans included

This case is well-suited for high-end builds with large GPUs and strong cooling needs. It offers great compatibility and airflow but is relatively heavy and spacious.
